一、产品概述Descriptions

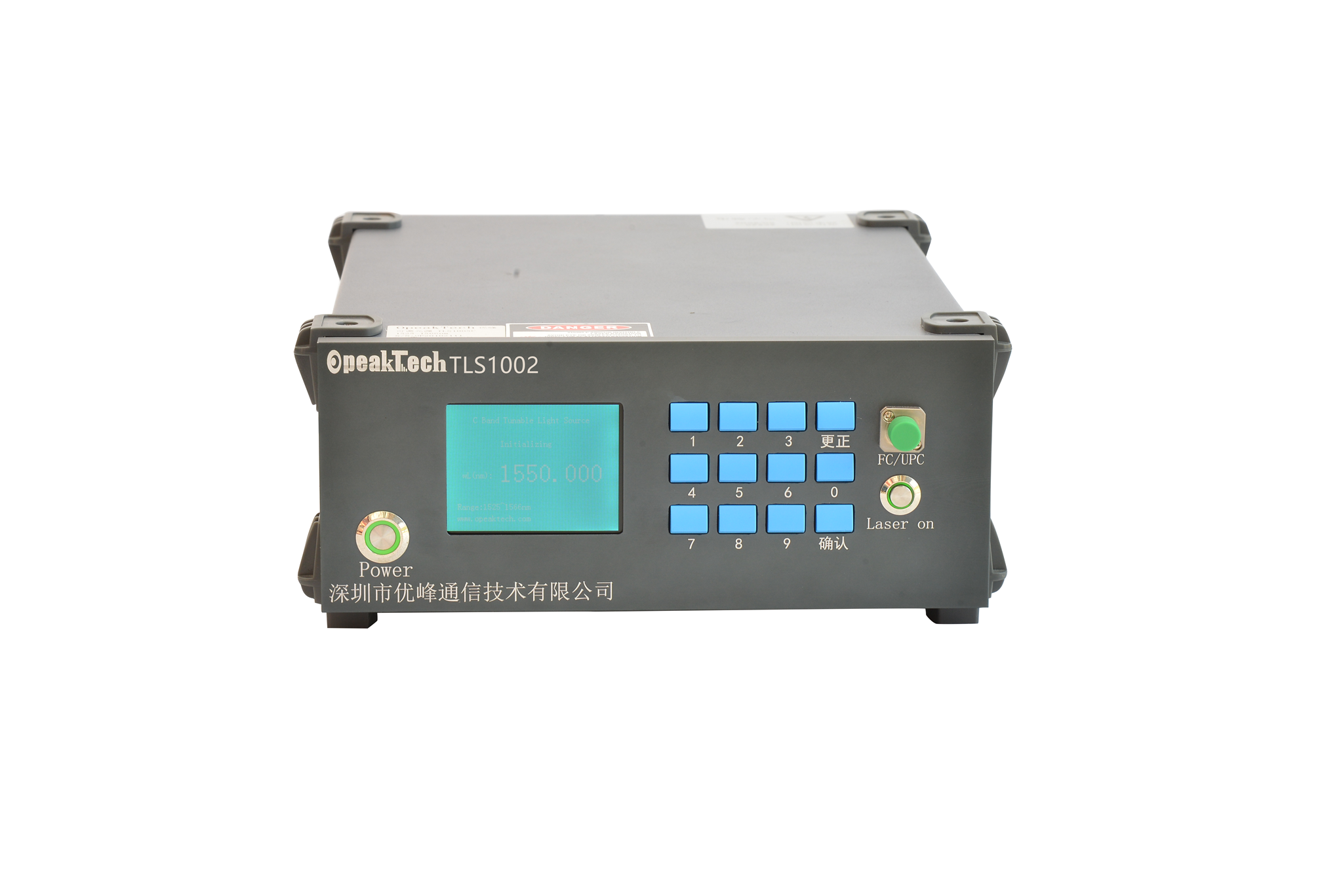

TLS1002C台式可调谐激光光源模块主要用于高精密波分复用DWDM元件、光波导光栅阵列AWG元件、平面光波导PLC元件、光放大器EDFA、DWDM系统以及其它通用的光纤的光学测量和应用。TLS1002C可调谐激光光源系统具有波长精度高，输出功率大、尺寸小巧、启动快速、价格实惠等特点。
The TLS1002C desktop tunable lasers offer superior performance for the testing of DWDM components, AWG & PLC components, optical amplifiers, DWDM system and other general purpose fiber optic test and measurement applications. It has a wavelength high accuracy, high power output, small dimensions, fast startup, and is an affordable tunable laser source system.
二、产品特性Features
- High Wavelength Accuracy /波长精度高
- High Output Power /输出功率大
- Fast Start-up /启动时间短
- Small Dimension /整体尺寸小
- USB digital keyboard /USB数字键盘
三、应用Applications
1、CWDM,DWDM, Filter, Components, Module, System Testing /CWDM, DWDM 滤光片，元件，模块和系统测量
2、OPM, Iterleaver, DPSK,WSS ,PLC, AWG components, modules testing /OPM, Interleaver, DPSK, WSS, PLC, AWG 元件和模块测量
3、Fiber Grating Sensors Sweep Testing /光纤传感器扫描测量
4、Fiber Optic Test Equipments Inspection and Testing /光纤测量仪器的检验和测量
5、Laser Sweep Optical Spectrum Analyze /激光扫描光谱分析
6、R&D and Lab Application /R&D 和实验室应用
7、Optical Coating Application /光学镀膜应用
四、性能指标Specifications
型号 Model # | TLS1002C |
波长范围 Wavelength range | 1529.168-1567.13nm |
输出功率 Output Power | >= 10 mW |
波长调谐间隔 ITU Gird | 50Ghz |
通道数 No. of Channels | 89(typ)/96(max) |
波长重复性 Wavelength repeatability | 5 pm |
波长稳定性 Wavelength stability | 5 pm (恒温24小时下, 24 hrs at constant temperature) |
调谐速度 Tuning speed | <20ms |
功率稳定性 Power stability | 0.05@8hours |
边模抑制比 Side-mode Suppression ratio | >= 40 dB |
相对噪声强度 Relative intensity noise | < -135 dB |
电源功率 Power | AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max. |
存储温度 Storage temperature | −40°C to +80°C |
工作温度 Operating temperature | 0°C to +45°C |
外形尺寸 Dimensions | 200 mm W, 105 mm H, 320 mm D |
重量 Weight | <5kg |
